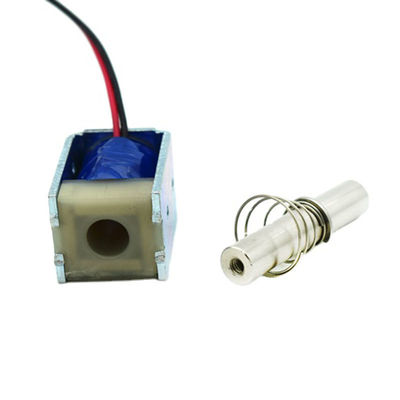

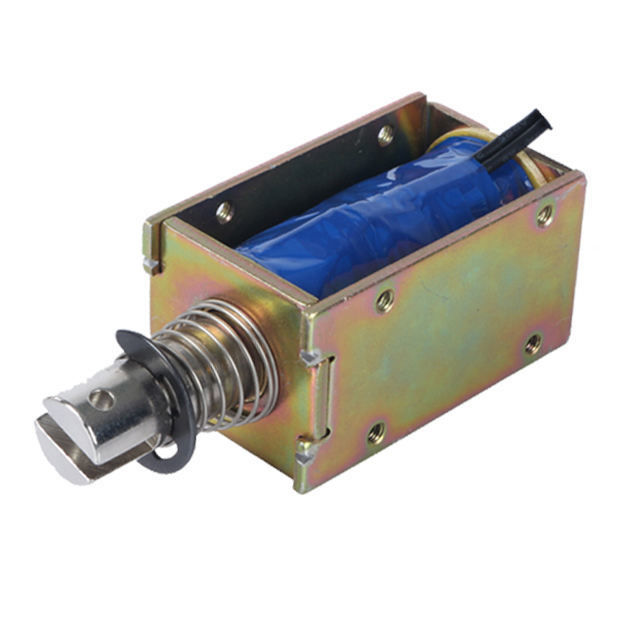

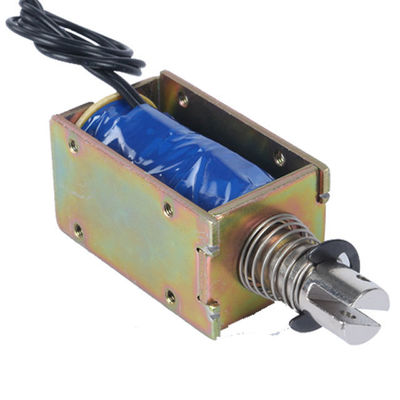

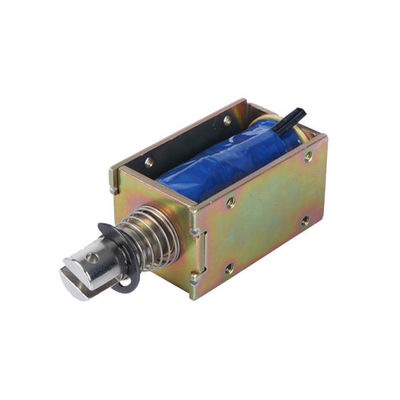

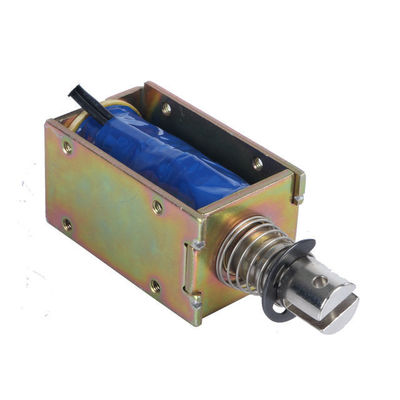

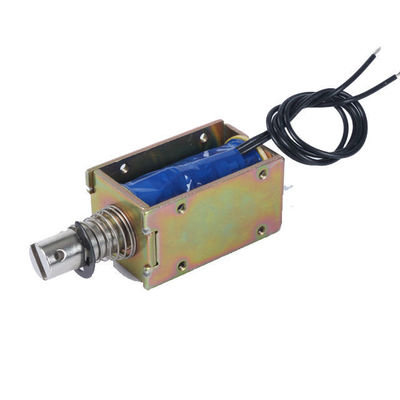

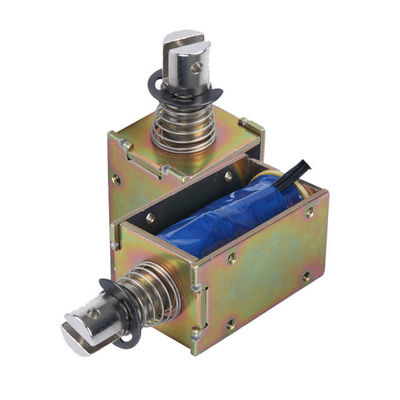

2mm Stroke 12v 24v Dc Open Frame Push Pull Solenoid

2mm Stroke 12v 24v Dc Open Frame Push Pull Solenoid
2mm Stroke 12v 24v Dc Open Frame Push Pull Solenoid
2mm Stroke 12v 24v Dc Open Frame Push Pull Solenoid 2mm Stroke 12v 24v Dc Open Frame Push Pull Solenoid 2mm Stroke 12v 24v Dc Open Frame Push Pull Solenoid 2mm Stroke 12v 24v Dc Open Frame Push Pull Solenoid 2mm Stroke 12v 24v Dc Open Frame Push Pull Solenoid 2mm Stroke 12v 24v Dc Open Frame Push Pull Solenoid 2mm Stroke 12v 24v Dc Open Frame Push Pull Solenoid 2mm Stroke 12v 24v Dc Open Frame Push Pull Solenoid

Ampliación de imagen :  2mm Stroke 12v 24v Dc Open Frame Push Pull Solenoid

Datos del producto:
Lugar de origen: China.
Nombre de la marca: Dason
Certificación: ISO9001
Número de modelo: U1253
Pago y Envío Términos:
Cantidad de orden mínima: 500
Precio: 10USD
Tiempo de entrega: 20 días
Condiciones de pago: T/t
Capacidad de la fuente: 500000 unidades
Contacto

2mm Stroke 12v 24v Dc Open Frame Push Pull Solenoid

descripción

Product spotlights


Supplier highlights:This manufacturer and trader mainly exports to Canada, the US, and Thailand, offers quality control services, and supports full customization and design customization. The products are certified. The positive review rate is 98.2% with 164 positive reviews.
Popular on Alibaba.com:This product enjoys significant popularity on Alibaba.com, driven by its competitive pricing and surging traffic.



Place of Origin
China
Brand Name
Dason

Model Number
SQ1253
Type
Push pull solenoid
Mounting Type
thread mounted holes
Description
push pull open frame solenoid
Application
actuator
Duty Cycle
10%, 25%, 50%, 100%
Power (Watts)
7.2-72w
Voltage - Rated
12v, 24v
Size / Dimension
53*30*27mm
Product name
12v 24v dc push pull solenoid
Material
Iron
Voltage
12V 24V
Keyword
Open Frame Solenoid
Feature
Miniature
Stroke
0-12mm
Connection
Female Thread
Products Specifications
Brand
Dason
Product Series
Open frame solenoid
Model
SQ1253
Voltage
12v/24v dc
Power
7.2-72w
Force
0-20N
Stroke
0-12mm
Duty Cycle
10-100%
Cable Length
200mm or customization
Materials
steel & enamelled wire
Action Form
Push pull type
Weight (N.W.)
0.215kg
Install style
Screw
Thread size & Deepth(mm)
8-M3
Hi-Pot Test
AC 600V 50/60Hz 2s
Insulation Class
B
Packaging details
Body size(mm)
53*30*27mm
Packaging box size(cm)
standard:21*14*13(cm), custom accepted







Product Features
1. Push and pull type optional, linear motion, stroke optional, plunger spring reset (also you can choose not) , Dc power supply, Mini size, standard model voltage have 6v/12v/24v optional, we can custom the voltage as you need.
2.The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.
3. The push pull mini frame solenoid are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.
4. Open frame structure with mounting holes, accepted custom as you needed.
2mm Stroke 12v 24v Dc Open Frame Push Pull Solenoid 0
