U0730 Mini Push Pull DC 12V 24V Open Frame Solenoid

Estoy en línea para chatear ahora

U0730 Mini Push Pull DC 12V 24V Open Frame Solenoid

U0730 Mini Push Pull DC 12V 24V Open Frame Solenoid
U0730 Mini Push Pull DC 12V 24V Open Frame Solenoid U0730 Mini Push Pull DC 12V 24V Open Frame Solenoid U0730 Mini Push Pull DC 12V 24V Open Frame Solenoid U0730 Mini Push Pull DC 12V 24V Open Frame Solenoid U0730 Mini Push Pull DC 12V 24V Open Frame Solenoid U0730 Mini Push Pull DC 12V 24V Open Frame Solenoid U0730 Mini Push Pull DC 12V 24V Open Frame Solenoid

Ampliación de imagen :  U0730 Mini Push Pull DC 12V 24V Open Frame Solenoid

Datos del producto:
Place of Origin: China
Nombre de la marca: Dason
Certificación: ISO9001
Model Number: U0730
Pago y Envío Términos:
Minimum Order Quantity: 500
Precio: 2
Delivery Time: 20days
Payment Terms: T/T
Supply Ability: 500000pcs

U0730 Mini Push Pull DC 12V 24V Open Frame Solenoid

descripción

Push Pull Solenoid/Open Frame Solenoid/Linear Solenoid
1. Open frame structure with mounting holes.
2. Push or pull type, linear motion, reset by plunger spring.
3. Dc power supply, standard voltage 12V or 24V, we can custom the voltage(3~24Vdc) as you need.
4. Connecting to power, plunger will pull in or push out, when power is off, plunger will reset by spring.
5. Electric Duty cycle(ED): 10%~100%, which depend on your power on time and off time in using.
6. Application: electronic machine, printing machines, robot arm, vending Machine,storage cabinet, sharing bicycle,subway gate etc.
7. Different models are available.
8. 20 years of design and produce experience,OEM/ODM is acceptable,



Products Data Sheet
Product name: Push Pull Solenoid Insulation Class: B
Model: U0730-1 Hi-Pot test: AC750V/2S

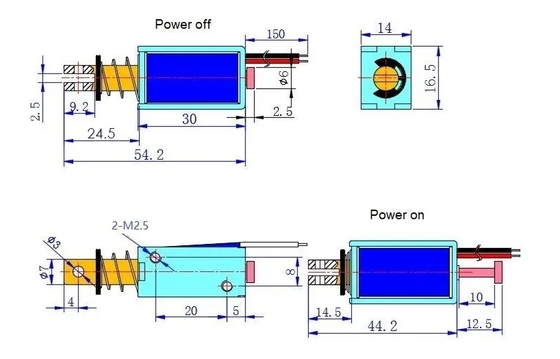

Frame Size: L30xW16xH14 Service Life: >500,000 Times
Stroke: 10 mm Lead time: 5 days if have stock
Action Form: Pull/Push Sample Order: Acceptable
Voltage: DC 6V/12V/24V or customzied MOQ: 5 PCS
Duty Cycle: 10%~100% Warranty: 2 Year
Install Thread size: M3 Origin: Ningbo, Zhejiang
N.W.: 36 g Surface: Electroplating
Certificate: CE/ROHS Material: steel & enameled wire



U0730 Mini Push Pull DC 12V 24V Open Frame Solenoid 0

U0730 Mini Push Pull DC 12V 24V Open Frame Solenoid 1

U0730 Mini Push Pull DC 12V 24V Open Frame Solenoid 2

U0730 Mini Push Pull DC 12V 24V Open Frame Solenoid 3
